LLM Eval For Text2SQL

Avatar
Ankur Goyal
May 29, 2024
Open in Github

In this cookbook, we're going to work through a Text2SQL use case where we are starting from scratch without a nice and clean dataset of questions, SQL queries, or expected responses. Although eval datasets are popular in academic settings, they are often not practically available in the real world. In this case, we'll build up a dataset using some simple handwritten questions and an LLM to generate samples based on the SQL dataset.

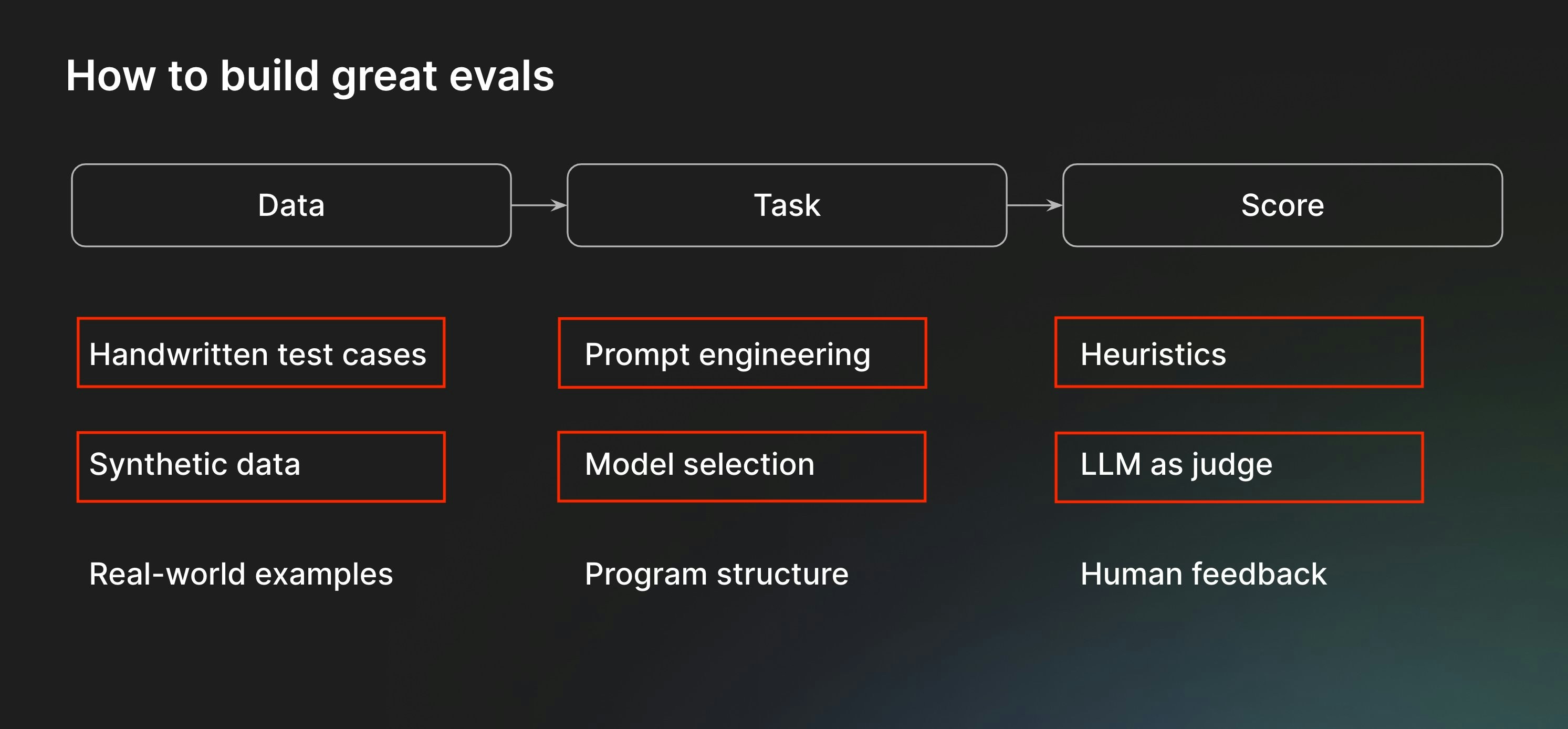

Along the way, we'll cover the following components of the eval process:

eval framework

Before starting, please make sure that you have a Braintrust account. If you do not, please sign up.

Setting up the environment

The next few commands will install some libraries and include some helper code for the text2sql application. Feel free to copy/paste/tweak/reuse this code in your own tools.

%pip install -U autoevals braintrust duckdb datasets openai pyarrow pydantic --quiet

Downloading the data

We're going to use an NBA dataset that includes information about games from 2014-2018. Let's start by downloading it and poking around.

We'll use DuckDB as the database, since it's easy to embed directly in the notebook.

import duckdb
from datasets import load_dataset

data = load_dataset("suzyanil/nba-data")["train"]

conn = duckdb.connect(database=":memory:", read_only=False)
conn.register("nba", data.to_pandas())

conn.query("SELECT * FROM nba LIMIT 5").to_df().to_dict(orient="records")[0]
{'Unnamed: 0': 1,
 'Team': 'ATL',
 'Game': 1,
 'Date': '10/29/14',
 'Home': 'Away',
 'Opponent': 'TOR',
 'WINorLOSS': 'L',
 'TeamPoints': 102,
 'OpponentPoints': 109,
 'FieldGoals': 40,
 'FieldGoalsAttempted': 80,
 'FieldGoals.': 0.5,
 'X3PointShots': 13,
 'X3PointShotsAttempted': 22,
 'X3PointShots.': 0.591,
 'FreeThrows': 9,
 'FreeThrowsAttempted': 17,
 'FreeThrows.': 0.529,
 'OffRebounds': 10,
 'TotalRebounds': 42,
 'Assists': 26,
 'Steals': 6,
 'Blocks': 8,
 'Turnovers': 17,
 'TotalFouls': 24,
 'Opp.FieldGoals': 37,
 'Opp.FieldGoalsAttempted': 90,
 'Opp.FieldGoals.': 0.411,
 'Opp.3PointShots': 8,
 'Opp.3PointShotsAttempted': 26,
 'Opp.3PointShots.': 0.308,
 'Opp.FreeThrows': 27,
 'Opp.FreeThrowsAttempted': 33,
 'Opp.FreeThrows.': 0.818,
 'Opp.OffRebounds': 16,
 'Opp.TotalRebounds': 48,
 'Opp.Assists': 26,
 'Opp.Steals': 13,
 'Opp.Blocks': 9,
 'Opp.Turnovers': 9,
 'Opp.TotalFouls': 22}

Prototyping text2sql

Now that we have the basic data in place, let's implement the text2sql logic. Don't overcomplicate it at the start. We can always improve its implementation later!

import os
from textwrap import dedent

import braintrust
import openai

client = braintrust.wrap_openai(
    openai.AsyncClient(
        api_key=os.environ["OPENAI_API_KEY"],
        base_url="https://api.braintrust.dev/v1/proxy",  # This is optional and allows us to cache responses
    )
)

columns = conn.query("DESCRIBE nba").to_df().to_dict(orient="records")

TASK_MODEL = "gpt-4o"


@braintrust.traced
async def generate_query(input):
    response = await client.chat.completions.create(
        model=TASK_MODEL,
        temperature=0,
        messages=[
            {
                "role": "system",
                "content": dedent(
                    f"""\
        You are a SQL expert, and you are given a single table named nba with the following columns:
        {", ".join(column["column_name"] + ": " + column["column_type"] for column in columns)}

        Write a SQL query corresponding to the user's request. Return just the query text, with no
        formatting (backticks, markdown, etc.).
"""
                ),
            },
            {
                "role": "user",
                "content": input,
            },
        ],
    )
    return response.choices[0].message.content


query = await generate_query("Who won the most games?")
print(query)
SELECT Team, COUNT(*) AS Wins
FROM nba
WHERE WINorLOSS = 'W'
GROUP BY Team
ORDER BY Wins DESC
LIMIT 1;

Awesome, let's try running the query!

def execute_query(query):
    return conn.query(query).fetchdf().to_dict(orient="records")


execute_query(query)
[{'Team': 'GSW', 'Wins': 265}]

Initial evals

An Eval() consists of three parts — data, task, and scores. We'll start with data.

Creating an initial dataset

Let's handwrite a few examples to bootstrap the dataset. It'll be a real pain, and probably brittle, to try and handwrite both questions and SQL queries/outputs. Instead, we'll just write some questions, and try to evaluate the outputs without an expected output.

questions = [
    "Which team won the most games?",
    "Which team won the most games in 2015?",
    "Who led the league in 3 point shots?",
    "Which team had the biggest difference in records across two consecutive years?",
    "What is the average number of free throws per year?",
]

Task function

Now let's write a task function. The function should take input (the question) and return output (the SQL query and results).

@braintrust.traced
async def text2sql(question):
    query = await generate_query(question)
    results = None
    error = None
    try:
        results = execute_query(query)
    except duckdb.Error as e:
        error = str(e)

    return {
        "query": query,
        "results": results,
        "error": error,
    }

Scores

At this point, there's not a lot we can score, but we can at least check if the SQL query is valid. If we generate an invalid query, the error field will be non-empty.

async def no_error(output):
    return output["error"] is None

Eval

And that's it! Now let's plug these things together and run an eval.

from braintrust import EvalAsync

PROJECT_NAME = "LLM Eval for Text2SQL"

await EvalAsync(
    PROJECT_NAME,
    experiment_name="Initial dataset",
    data=[{"input": q} for q in questions],
    task=text2sql,
    scores=[no_error],
)
Experiment Initial dataset is running at https://www.braintrust.dev/app/braintrustdata.com/p/LLM%20Eval%20for%20Text2SQL/experiments/Initial%20dataset
LLM Eval for Text2SQL [experiment_name=Initial dataset] (data): 5it [00:00, 33078.11it/s]
LLM Eval for Text2SQL [experiment_name=Initial dataset] (tasks):   0%|          | 0/5 [00:00<?, ?it/s]

=========================SUMMARY=========================
60.00% 'no_error' score

See results for Initial dataset at https://www.braintrust.dev/app/braintrustdata.com/p/LLM%20Eval%20for%20Text2SQL/experiments/Initial%20dataset
EvalResultWithSummary(...)

Ok! It looks like 3/5 of our queries are valid. Let's take a closer look in the Braintrust UI.

eval results

Interpreting results

Now that we ran the initial eval, it looks like two of the results are valid, two produce SQL errors, and one is incorrect.

To best utilize these results:

  1. Let's capture the good data into a dataset. Since our eval pipeline did the hard work of generating a reference query and results, we can now save these, and make sure that future changes we make do not regress the results.

add to dataset

  • The incorrect query didn't seem to get the date format correct. That would probably be improved by showing a sample of the data to the model.

invalid query

  • There are two binder errors, which may also have to do with not understanding the data format.

binder errors

Updating the eval

Let's start by reworking our data function to pull the golden data we're storing in Braintrust and extend it with the handwritten questions. Since there may be some overlap, we automatically exclude any questions that are already in the dataset.

from braintrust import init_dataset


def load_data():
    golden_data = init_dataset(PROJECT_NAME, "Golden data")
    golden_questions = set(d["input"] for d in golden_data)
    return list(golden_data) + [
        {"input": q} for q in questions if q not in golden_questions
    ]


load_data()[0]
{'id': '614006b1-a8b1-40c2-b700-3634c4fb14f5',
 '_xact_id': '1000193117554478505',
 'created': '2024-05-29 16:23:59.989+00',
 'project_id': 'b8d44d19-7999-49b0-911b-1f0aaafc5bac',
 'dataset_id': 'a6c337e3-f7f7-4a96-8529-05cb172f847e',
 'input': 'Which team won the most games?',
 'expected': {'error': None,
  'query': "SELECT Team, COUNT(*) AS Wins\nFROM nba\nWHERE WINorLOSS = 'W'\nGROUP BY Team\nORDER BY Wins DESC\nLIMIT 1;",
  'results': [{'Team': 'GSW', 'Wins': 265}]},
 'metadata': {},
 'tags': [],
 'span_id': '614006b1-a8b1-40c2-b700-3634c4fb14f5',
 'root_span_id': '614006b1-a8b1-40c2-b700-3634c4fb14f5'}

Now, let's tweak the prompt to include a sample of each row.

samples = conn.query("SELECT * FROM nba LIMIT 1").to_df().to_dict(orient="records")[0]


@braintrust.traced
async def generate_query(input):
    response = await client.chat.completions.create(
        model=TASK_MODEL,
        temperature=0,
        messages=[
            {
                "role": "system",
                "content": dedent(f"""\
        You are a SQL expert, and you are given a single table named nba with the following columns:

        Column | Type | Example
        -------|------|--------
        {"\n".join(f"{column['column_name']} | {column['column_type']} | {samples[column['column_name']]}" for column in columns)}

        Write a DuckDB SQL query corresponding to the user's request. Return just the query text, with no
        formatting (backticks, markdown, etc.).
"""),
            },
            {
                "role": "user",
                "content": input,
            },
        ],
    )
    return response.choices[0].message.content


print(await generate_query("Which team won the most games in 2015?"))
SELECT Team, COUNT(*) AS Wins
FROM nba
WHERE WINorLOSS = 'W' AND Date LIKE '%/15'
GROUP BY Team
ORDER BY Wins DESC
LIMIT 1;

Looking much better! Finally, let's add a scoring function that compares the results, if they exist, with the expected results.

from autoevals import JSONDiff, Sql


def extract_values(results):
    return [list(result.values()) for result in results]


def correct_result(output, expected):
    if (
        expected is None
        or expected.get("results") is None
        or output.get("results") is None
    ):
        return None
    return JSONDiff()(
        output=extract_values(output["results"]),
        expected=extract_values(expected["results"]),
    ).score


def correct_sql(input, output, expected):
    if expected is None or expected.get("query") is None or output.get("query") is None:
        return None
    return Sql()(input=input, output=output["query"], expected=expected["query"]).score

Great. Let's plug these pieces together and run an eval!

await EvalAsync(
    PROJECT_NAME,
    experiment_name="With samples",
    data=load_data,
    task=text2sql,
    scores=[no_error, correct_result, correct_sql],
)
Experiment With samples is running at https://www.braintrust.dev/app/braintrustdata.com/p/LLM%20Eval%20for%20Text2SQL/experiments/With%20samples
LLM Eval for Text2SQL [experiment_name=With samples] (data): 5it [00:00, 17848.10it/s]
LLM Eval for Text2SQL [experiment_name=With samples] (tasks):   0%|          | 0/5 [00:00<?, ?it/s]

=========================SUMMARY=========================
With samples compared to Initial dataset:
80.00% (+20.00%) 'no_error'       score	(1 improvements, 0 regressions)
100.00% 'correct_result' score
100.00% 'correct_sql'    score

5.78s duration

See results for With samples at https://www.braintrust.dev/app/braintrustdata.com/p/LLM%20Eval%20for%20Text2SQL/experiments/With%20samples
EvalResultWithSummary(...)

Amazing. It looks like we removed one of the errors, and got a result for the incorrect query.

updated eval

Let's add the "Which team won the most games in 2015?" row to our dataset, since its answer now looks correct.

Generating more data

Now that we have a basic flow in place, let's generate some data. We're going to use the dataset itself to generate expected queries, and have a model describe the queries. This is a slightly more robust method than having it generate queries, because we'd expect a model to describe a query more accurately than generate one from scratch.

import json

from pydantic import BaseModel


class Question(BaseModel):
    sql: str
    question: str


class Questions(BaseModel):
    questions: list[Question]


logger = braintrust.init_logger("question generator")

response = await client.chat.completions.create(
    model="gpt-4o",
    temperature=0,
    messages=[
        {
            "role": "user",
            "content": dedent(f"""\
        You are a SQL expert, and you are given a single table named nba with the following columns:

        Column | Type | Example
        -------|------|--------
        {"\n".join(f"{column['column_name']} | {column['column_type']} | {samples[column['column_name']]}" for column in columns)}

        Generate SQL queries that would be interesting to ask about this table. Return the SQL query as a string, as well as the
        question that the query answers."""),
        }
    ],
    tools=[
        {
            "type": "function",
            "function": {
                "name": "generate_questions",
                "description": "Generate SQL queries that would be interesting to ask about this table.",
                "parameters": Questions.model_json_schema(),
            },
        }
    ],
    tool_choice={"type": "function", "function": {"name": "generate_questions"}},
)

generated_questions = json.loads(response.choices[0].message.tool_calls[0].function.arguments)["questions"]
generated_questions[0]
{'sql': "SELECT Team, COUNT(*) as TotalGames, SUM(CASE WHEN WINorLOSS = 'W' THEN 1 ELSE 0 END) as Wins, SUM(CASE WHEN WINorLOSS = 'L' THEN 1 ELSE 0 END) as Losses FROM nba GROUP BY Team;",
 'question': 'What is the total number of games played, wins, and losses for each team?'}
generated_dataset = []
for q in generated_questions:
    try:
        result = execute_query(q["sql"])
        generated_dataset.append(
            {
                "input": q["question"],
                "expected": {
                    "results": result,
                    "error": None,
                    "query": q["sql"],
                },
                "metadata": {
                    "category": "Generated",
                },
            }
        )
    except duckdb.Error as e:
        print(f"Query failed: {q['sql']}", e)
        print("Skipping...")

generated_dataset[0]
Query failed: SELECT Team, AVG(FieldGoals.) as AvgFieldGoalPercentage, AVG(X3PointShots.) as Avg3PointPercentage, AVG(FreeThrows.) as AvgFreeThrowPercentage FROM nba GROUP BY Team; Parser Error: syntax error at or near ")"
Skipping...
Query failed: SELECT Team, AVG(Opp.FieldGoals.) as AvgOppFieldGoalPercentage, AVG(Opp.3PointShots.) as AvgOpp3PointPercentage, AVG(Opp.FreeThrows.) as AvgOppFreeThrowPercentage FROM nba GROUP BY Team; Parser Error: syntax error at or near ")"
Skipping...
{'input': 'What is the total number of games played, wins, and losses for each team?',
 'expected': {'results': [{'Team': 'ATL',
    'TotalGames': 328,
    'Wins': 175.0,
    'Losses': 153.0},
   {'Team': 'CHI', 'TotalGames': 328, 'Wins': 160.0, 'Losses': 168.0},
   {'Team': 'NYK', 'TotalGames': 328, 'Wins': 109.0, 'Losses': 219.0},
   {'Team': 'POR', 'TotalGames': 328, 'Wins': 185.0, 'Losses': 143.0},
   {'Team': 'DEN', 'TotalGames': 328, 'Wins': 149.0, 'Losses': 179.0},
   {'Team': 'UTA', 'TotalGames': 328, 'Wins': 177.0, 'Losses': 151.0},
   {'Team': 'BRK', 'TotalGames': 328, 'Wins': 107.0, 'Losses': 221.0},
   {'Team': 'CHO', 'TotalGames': 328, 'Wins': 153.0, 'Losses': 175.0},
   {'Team': 'DAL', 'TotalGames': 328, 'Wins': 149.0, 'Losses': 179.0},
   {'Team': 'LAC', 'TotalGames': 328, 'Wins': 202.0, 'Losses': 126.0},
   {'Team': 'DET', 'TotalGames': 328, 'Wins': 152.0, 'Losses': 176.0},
   {'Team': 'GSW', 'TotalGames': 328, 'Wins': 265.0, 'Losses': 63.0},
   {'Team': 'IND', 'TotalGames': 328, 'Wins': 173.0, 'Losses': 155.0},
   {'Team': 'MIA', 'TotalGames': 328, 'Wins': 170.0, 'Losses': 158.0},
   {'Team': 'MIL', 'TotalGames': 328, 'Wins': 160.0, 'Losses': 168.0},
   {'Team': 'SAC', 'TotalGames': 328, 'Wins': 121.0, 'Losses': 207.0},
   {'Team': 'OKC', 'TotalGames': 328, 'Wins': 195.0, 'Losses': 133.0},
   {'Team': 'PHI', 'TotalGames': 328, 'Wins': 108.0, 'Losses': 220.0},
   {'Team': 'PHO', 'TotalGames': 328, 'Wins': 107.0, 'Losses': 221.0},
   {'Team': 'SAS', 'TotalGames': 328, 'Wins': 230.0, 'Losses': 98.0},
   {'Team': 'BOS', 'TotalGames': 328, 'Wins': 196.0, 'Losses': 132.0},
   {'Team': 'HOU', 'TotalGames': 328, 'Wins': 217.0, 'Losses': 111.0},
   {'Team': 'LAL', 'TotalGames': 328, 'Wins': 99.0, 'Losses': 229.0},
   {'Team': 'MIN', 'TotalGames': 328, 'Wins': 123.0, 'Losses': 205.0},
   {'Team': 'TOR', 'TotalGames': 328, 'Wins': 215.0, 'Losses': 113.0},
   {'Team': 'CLE', 'TotalGames': 328, 'Wins': 211.0, 'Losses': 117.0},
   {'Team': 'MEM', 'TotalGames': 328, 'Wins': 162.0, 'Losses': 166.0},
   {'Team': 'NOP', 'TotalGames': 328, 'Wins': 157.0, 'Losses': 171.0},
   {'Team': 'ORL', 'TotalGames': 328, 'Wins': 114.0, 'Losses': 214.0},
   {'Team': 'WAS', 'TotalGames': 328, 'Wins': 179.0, 'Losses': 149.0}],
  'error': None,
  'query': "SELECT Team, COUNT(*) as TotalGames, SUM(CASE WHEN WINorLOSS = 'W' THEN 1 ELSE 0 END) as Wins, SUM(CASE WHEN WINorLOSS = 'L' THEN 1 ELSE 0 END) as Losses FROM nba GROUP BY Team;"},
 'metadata': {'category': 'Generated'}}

Awesome, let's update our dataset with the new data.

def load_data():
    golden_data = init_dataset(PROJECT_NAME, "Golden data")
    golden_questions = set(d["input"] for d in golden_data)
    return (
        [{**x, "metadata": {"category": "Golden data"}} for x in golden_data]
        + [
            {"input": q, "metadata": {"category": "Handwritten question"}}
            for q in questions
            if q not in golden_questions
        ]
        + [x for x in generated_dataset if x["input"] not in golden_questions]
    )
await EvalAsync(
    PROJECT_NAME,
    experiment_name="Generated data",
    data=load_data,
    task=text2sql,
    scores=[no_error, correct_result, correct_sql],
)
Experiment Generated data is running at https://www.braintrust.dev/app/braintrustdata.com/p/LLM%20Eval%20for%20Text2SQL/experiments/Generated%20data
LLM Eval for Text2SQL [experiment_name=Generated data] (data): 13it [00:00, 36916.69it/s]
LLM Eval for Text2SQL [experiment_name=Generated data] (tasks):   0%|          | 0/13 [00:00<?, ?it/s]

=========================SUMMARY=========================
Generated data compared to With samples:
84.62% (-) 'no_error'       score	(0 improvements, 0 regressions)
69.72% (-) 'correct_result' score	(0 improvements, 0 regressions)
63.64% (-) 'correct_sql'    score	(0 improvements, 0 regressions)

4.23s (-155.93%) 'duration'	(0 improvements, 0 regressions)

See results for Generated data at https://www.braintrust.dev/app/braintrustdata.com/p/LLM%20Eval%20for%20Text2SQL/experiments/Generated%20data
EvalResultWithSummary(...)

eval 3

Amazing! Now we have a rich dataset to work with and some failures to debug. From here, you could try to investigate whether some of the generated data needs improvement, or try tweaking the prompt to improve accuracy, or maybe even something more adventurous, like feed the errors back to the model and have it iterate on a better query. Most importantly, we have a good workflow in place to iterate on both the application and dataset.

Trying GPT-4

Just for fun, let's wrap things up by trying out GPT-4. All we need to do is switch the model name, and run our Eval() function again.

TASK_MODEL = "gpt-4"

await EvalAsync(
    PROJECT_NAME,
    experiment_name="Try gpt-4",
    data=load_data,
    task=text2sql,
    scores=[no_error, correct_result, correct_sql],
)
Experiment Try gpt-4 is running at https://www.braintrust.dev/app/braintrustdata.com/p/LLM%20Eval%20for%20Text2SQL/experiments/Try%20gpt-4
LLM Eval for Text2SQL [experiment_name=Try gpt-4] (data): 13it [00:00, 25491.33it/s]
LLM Eval for Text2SQL [experiment_name=Try gpt-4] (tasks):   0%|          | 0/13 [00:00<?, ?it/s]

=========================SUMMARY=========================
Try gpt-4 compared to Generated data:
46.14% (-23.58%) 'correct_result' score	(1 improvements, 5 regressions)
84.62% (-) 'no_error'       score	(1 improvements, 1 regressions)
54.55% (-09.09%) 'correct_sql'    score	(1 improvements, 2 regressions)

6.77s (+254.27%) 'duration'	(0 improvements, 1 regressions)

See results for Try gpt-4 at https://www.braintrust.dev/app/braintrustdata.com/p/LLM%20Eval%20for%20Text2SQL/experiments/Try%20gpt-4
EvalResultWithSummary(...)

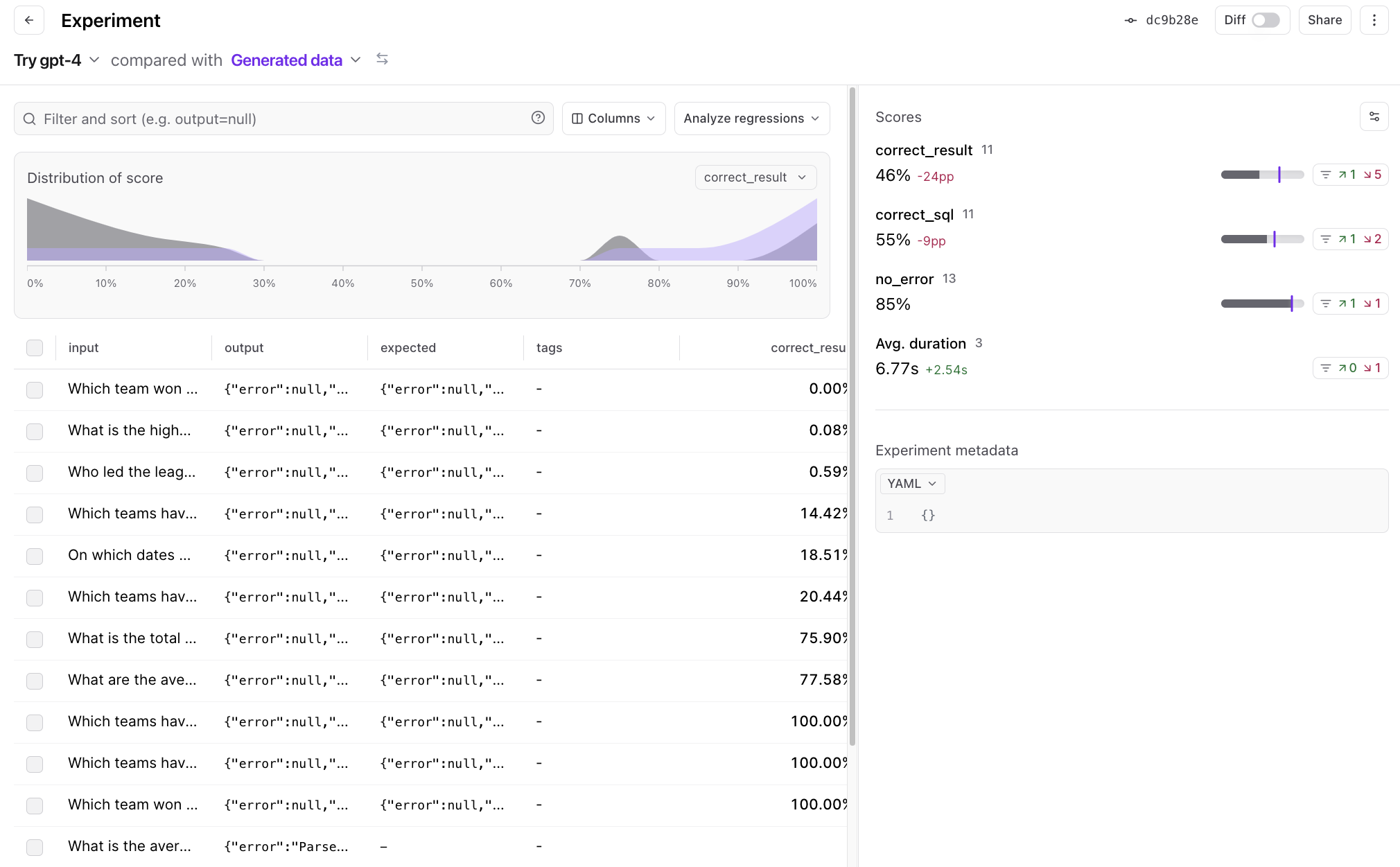

Interesting. It seems like that was not a slam dunk. There were a few regressions on each of the scores:

gpt-4-eval

Braintrust makes it easy to filter down to the regressions, and view a side-by-side diff:

diff

Conclusion

In this cookbook, we walked through the process of building a dataset for a text2sql application. We started with a few handwritten examples, and iterated on the dataset by using an LLM to generate more examples. We used the eval framework to track our progress, and iterated on the model and dataset to improve the results. Finally, we tried out a more powerful model to see if it could improve the results.

Happy evaling!

On this page
